about

Jenny Science is an ambitious international family business that specializes in designing and manufacturing high-quality linear stage components for industrial automation. With its headquarters located in Rain (Lucerne), the company boasts of a team of 65 skilled professionals who are committed to delivering exceptional linear motion solutions to discerning clients globally. The product range includes compact linear motor stages, linear actuators, rotary stages and web-based servo controllers that are intelligently designed to ensure the possibility of Forceteq® basic/pro force control with optimal performance.

Picture 1.png

xenax drives

With the web browser (such as Firefox®, Chrome®, Edge®), the user navigates through the parameterization menu. The integrated web server in the XENAX® Ethernet servo controller from Jenny Science contains the HTML5 GUI WebMotion®.



EX series is a revolutionary step towards pneumatic slides. The patented integration of linear motor in the slider case which results in a more precision, force and volume ratio that has never been achieved before. It’s very easy for modular system with direct screw connection.

​

​https://www.jennyscience.com/en/products/xenax-servo-controller

intax protocol.png

forceteq

With the worldwide unique, patented Forceteq® force-displacement measurement technology, forces can be measured directly with the XENAX® Xvi servo controller, without external sensors and evaluation devices.

​

Forceteq Basic

https://www.jennyscience.com/en/products/forceteq-force-measurement/forceteq-basic



Forceteq Pro

https://www.jennyscience.com/en/products/forceteq-force-measurement/forceteq-pro


intax

Completely integrated linear motor axis INTAX® Tx

Servo controller integrated.

Linear Motor cabling integrated.

Cable chain integrated.

​

https://www.jennyscience.com/en/products/intax-linear-motor-axis

intax drives protocol.png
lxc compact_jenny science.png

lxc = compact

Compact series of linear motor states in patented mono-bloc design. The magnets move while the coils are stationary. This means that the cables are stationary and there are no movable cable chains necessary in single axis applications.



https://www.jennyscience.com/en/products/linax-linear-motor-axis/linax-lxc

Lou universal_jenny science.png

lxu = universal

These universal linear motor axes of Jenny Science are real “all-rounders”. There are three installation options:

On the carriage slider

On the ground plate

Or on the front flange



https://www.jennyscience.com/en/products/linax-linear-motor-axis/linax-lxu

lxs shuttle_jenny science.png

lxs = shuttle

As the name implies, the Lxs shuttle series are basic axes for long strokes up to 1'600 mm. Of particular importance is the wide-body construction with recessed linear motor, through which the height is reduced to just 38 mm.

​

https://www.jennyscience.com/en/products/linax-linear-motor-axis/linax-lxs_F60

f120_jenny science.png

lxs F120 model

The Lxs Shuttle linear motor stages, designed for travel distances up to 1'600 mm, feature a "recessed" linear motor design and a height of only 45mm for the Lxs F120 model. A new, more potent motor is incorporated, boasting a nominal force of 120N and peak performances up to 300N.

​

https://www.jennyscience.com/en/products/linax-linear-motor-axis/linax-lxs_F120

elax_jenny science.png

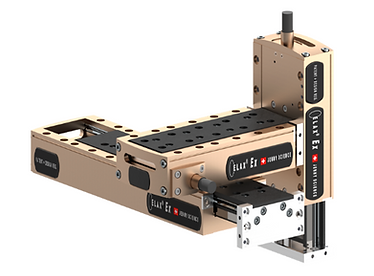

elax

These new, electric linear motor slides ELAX® Ex from Jenny Science are predestined for fast and precise pick and place units! Furthermore, the programmable force control processes open new application possibilities in handling, assembly and inspection. With these features the ELAX® linear motor slide also convinced the jury of the chamber of commerce and won the Swiss Innovation Award 2015!

​

https://www.jennyscience.com/en/products/elax-electric-slide

rsvp vacuum pressure_jenny science.png

rxvp = vacuum pressure

The ultra-compact ROTAX® rotary motor axis with a vacuum gripper picks up parts within a typical weight range of 1 mg to 500 g. Many commercially available vacuum grippers can be attached to the standardized M5 threaded hole. The ROTAX® rotary motor axes can also be directly mounted to the ELAX® linear motor slides or the LINAX® linear motor axes.

​

https://www.jennyscience.com/en/products/rotax-rotary-motor-axis/rotax-rxvp-28

rxhq high torque_jenny science.png

rxhq = high torque

The ultra-compact ROTAX® rotary motor axis with a vacuum gripper picks up parts within a typical weight range of 1 mg to 500 g. Many commercially available vacuum grippers can be attached to the standardized M5 threaded hole. The ROTAX® rotary motor axes can also be directly mounted to the ELAX® linear motor slides or the LINAX® linear motor axes.



https://www.jennyscience.com/en/products/rotax-rotary-motor-axis/rotax-rxvp-28

rxhq_jenny science.png

SPECIFIC ADVANTAGES

​

Ultra compact dimensions

Oversized continuous hollow shaft

High torque - no gearbox

Integrated absolute encoder system

Single cable connection

​

https://www.jennyscience.com/en/products/rotax-rotary-motor-axis/rotax-rxhq-110

more features of jenny science

  • Vertical Weight Compensation with compressed air.

  • Master Slave Function for synchronization between driver/controller.

  • TUV Certified Safety Function.

  • Modular system can be screwed directly without the needs of adapter.
